Cutting Tools

Mirinda Tools

Drilling Tools

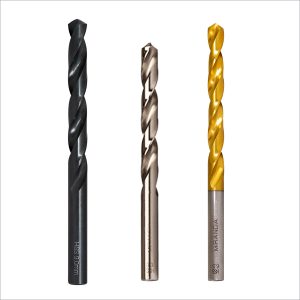

HSS Jobber Drills M2

Product Range

Types:- Jobber, Stub, Taper Shank Long & Extra Long, Gold, Super Drill, Center Drill, NC Point Drill
Range:- 1.0 mm to 76.0 mm (OAL upto 500 mm)
Grade of Steel:- M2, M35 & M42

Applications

Steel
Stainless Steel
Cast Iron Brass
Aluminium
Non-Ferrous Metal

Industries

Automotive & Auto Components
Railways & Infrastructure
Aerospace & Defense
Heavy Engineering
Machine Tools
Electronics & Electrical

Dia. In mm (D)	Flute Length MM (LI)	Overall Length MM (L)	Pack Qty. NOS.
1.00	12	34	10
1.05	12	34	10
1.10	14	36	10
1.15	14	36	10
1.20	16	38	10

Milling & Reaming Tools

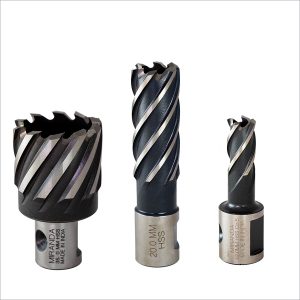

Annular Cutter HSS

Product Range

Type:- HSS/TCT Annular Cutter
Size:- 11.0 mm to 100.0 mm
Depth of Cut:- 50.0/75.0/100.0 mm
Grade:- HSS-M2, M35 & M42

Applications

- Structural Steel
- Stainless Steel
- Cast Iron
- Mild Steel
- Aluminium
- Corrugated Materila

Industry

Construction & Utility
Railways & Infrastructure
Bridge and Tower Construction
Ship Building, Mining, Packaging, Refineries
Offshore Rigs & Pipelines
Sheet metal & Fabrication Industry

Diameter	Depth of Cut			Grade	Shank
12-13	25	35	50	M2/M35/M42/TCT	Weldon/Universal Type
14-15	25	35	50	M2/M35/M42/TCT	Weldon/Universal Type
16-17	25	35	50	M2/M35/M42/TCT	Weldon/Universal Type
18-19	25	35	50	M2/M35/M42/TCT	Weldon/Universal Type
20-21	25	35	50	M2/M35/M42/TCT	Weldon/Universal Type

Turning Tools

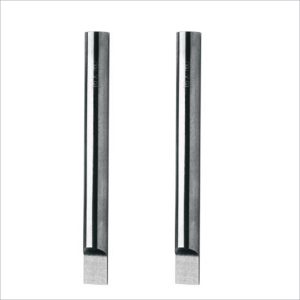

HSS Engraving Tools Bits

Product Details

Miranda Engraving Tools are made from M42 & grades of HSS.
Special Sizes and tolerances can be supplied.
S200=M42 (HSS with 8% Cobalt) (65-68 HRc)

Intermediate sizes are available on request

Metric Sizes
Diameter d mm	Length (Tolerance +/- 1.0 mm) L mm
1.5	40	–	–	–	–	–	–
2	40	–	–	–	–	–	–
2.5	40	–	–	–	–	–	–
3	40	63	–	–	–	–	–
4	–	63	80	100	–	–	–
5	–	63	80	100	–	–	–

Threading Tools

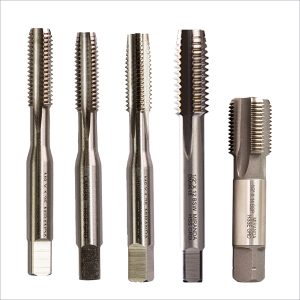

HSS Taps

MIRANDA Ground Thread Taps will be supplied in M2, M35, M42 Grade of HSS.
Taps of dia 7.0mm & below will be supplied with external (male) center on both side or chamfer at Shank side.
And dia 8.00mm and above will be supplied with internal (female) center on both side.

TOLERANCE :

Standard Tolerance is ISO Class 2; 6H; 2B; Zone 3.
Other Tolerance like ISO Class I, ISO Class 3, 4H, 5H, 7H, 4G, 6G, 1B, 3B, Zone I, Zone2, Zone4.
Or Special tolerance will be maintained as per request of customer.

APPLICATION & SPECIAL TAPS :

Application Taps or Special Taps can be supplied as per requirement of customer or drawing of Customer
or designed by us. Also Special geometry Taps can be supplied on customer request.

SURFACE TREATMENT & COATING :

We can supply Taps with different surface treatment and coating like TiN,TiCN,TiAIN,Steam tempered etc.
As per requirement of customer.

MARKING :

Size, Pitch, Brand Name, Material Grade, Batch Code.
Or As Per Customer Request.

PACKING :

Split Plastic Box or Plastic Tube.
Or As Per Customer Requirement.

HAND & SHORT MACHINE TAPS (REINFORCED SHANK)

Thread Designation	Pitch	Shank Diameter(d)	Thread Length(l)	Recess Length(l)	Overall Length(L)	Square		75% Thread depth drill size
M 1	0.25	2.50	5.50	4.50	38.50	2.00	4.00	0.76
(M 1.1)	0.25	2.50	5.50	4.50	38.50	2.00	4.00	0.86
M 1.2	0.25	2.50	5.50	4.50	38.50	2.00	4.00	0.96
(M 1.4)	0.30	2.50	7.00	5.00	40.00	2.00	4.00	1.11

Sawing Tools

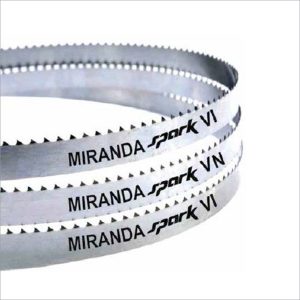

Premium Bi-Metal
Band Saw Blade (M-42)

Characteristics

Slightly positive rake angle
Variable TPI
M42 HSS teeth tips
Hardness up to 68 HRC
Excellent life time expectancy

Application

Tubes, beams, profiles
Single as well as bundle cutting
Carboon steels
Alloyed steels

Dimensions	TPI-teeth per inch
mm	2/3	3/4	4/6	5/7	8/11
20×0.90	–	–	–	V-POS	V-POS
27×0.90	–	V-POS	V-POS	V-POS	V-POS
34×1.10	V-POS	V-POS	V-POS	V-POS	V-POS
41×1.30	V-POS	V-POS	V-POS	V-POS	V-POS

Deburring Tools

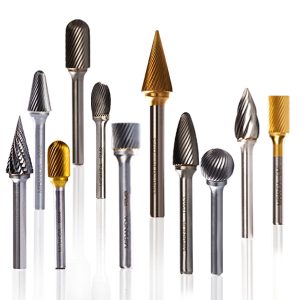

Tungsten carbide Rotary Burrs

Product Description
Tungsten Carbide Rotary Burr are applicable on Tough & Hardened Steels. Example – Stainless Steels, Hard Bronze & other hardened metals etc. Mostly our Rotary Burrs are used by Die Casting Units, Forging workshops, Foundries etc.

Various Rotary Burrs which can be supplied by us in Tungsten Carbide are as under:

Ball Shape Burrs
Oval Shape Burrs
Tree Shape Burrs with Radius End
Tree Shape Burrs with Pointed End
Cylindrical Burrs
Cylindrical Burrs with end cut
Cylindrical Burrs with radius cut
Cone Shape Burrs
Cone with Radius End Burrs
Inverted Cone Shape Burrs
Flame Shape Burrs
Rim Shape Burrs
Burr Sets

Shape	Miranda Code	Description Head DIA X Head Leng TH X OAL Length X Shank DIA	Include Angle	No of Teeth
Conical	MAM1	3MM X 11MM X 38MM X 3SHK	20	10
Cylindrical Radius End	MBM1	3MM X 16MM X 38MM X 3SHK	–	10
Cylindrical	MCM1	3MM X 16MM X 38MM X 3SHK	–	10
Flame	FM1	6MM X 15MM X 50MM X 6SHK	–	15
Cone Radius	MKM1	3MM X 8MM X 38MM X 3SHK	10	15
